Diamond Wire Rope Saw 7.2-11.5mm Granite Marble concrete Block Quarry Slab Cutting
[ZOOMPIC]

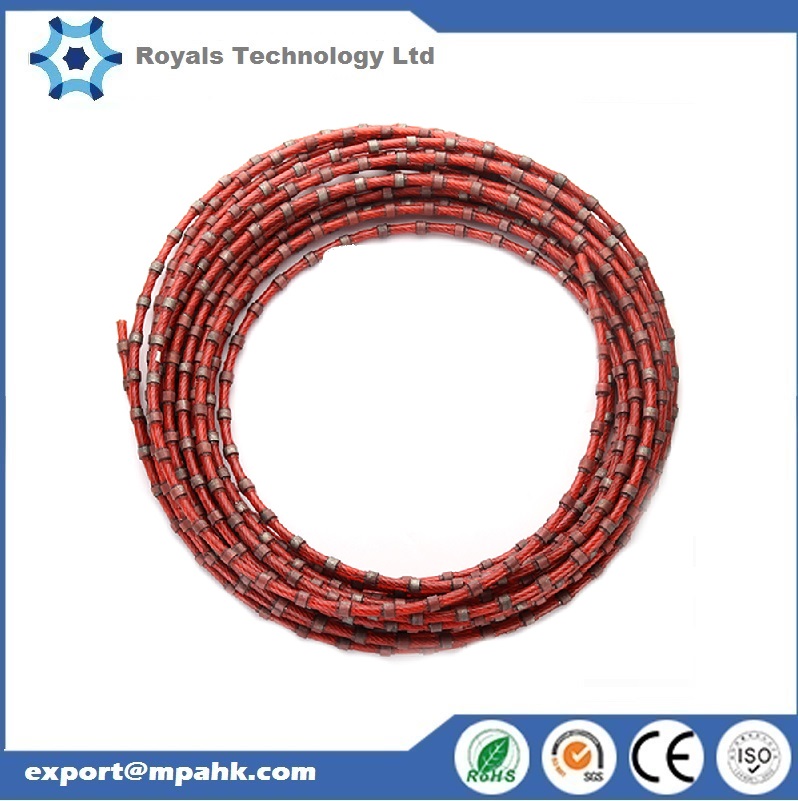

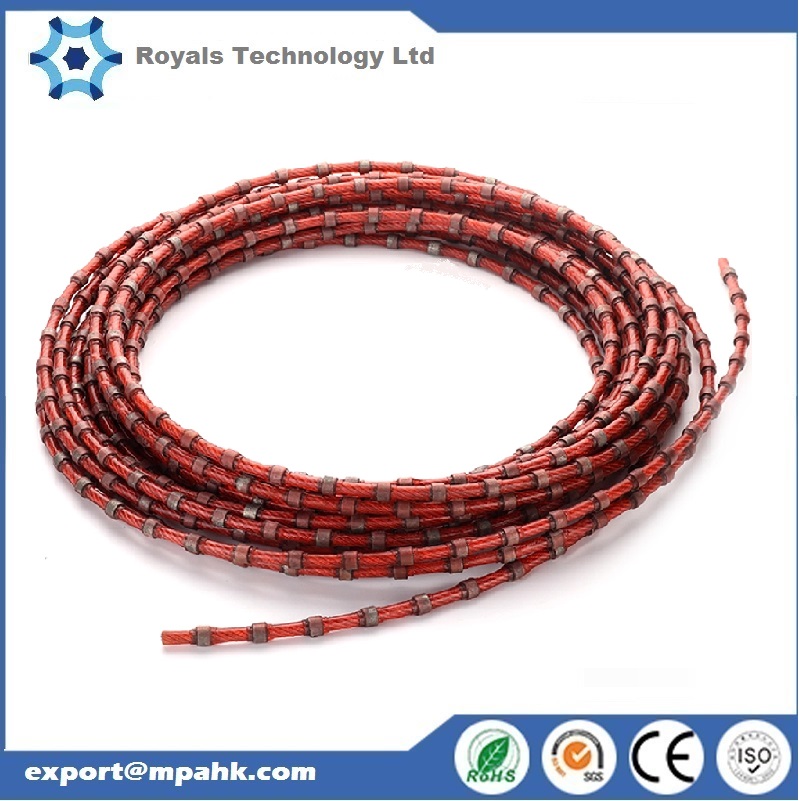

Diamond Wire Rope Saw
Diameter covers 7.2, 7.5, 8.0, 8.5, 9.0, 11.0 11.5mm
Use for Granite Marble reinforced concrete Granite Marble concrete Block Quarry Slab Cutting
All the Diamond Wire Saw with outstanding feature
1. Connected by best quality Rubber , Spring Plastic
2. 100% High-grade Steel cable
3. High grade of diamonds
4. Pre-sharpened beads, easy starting
|
Application |

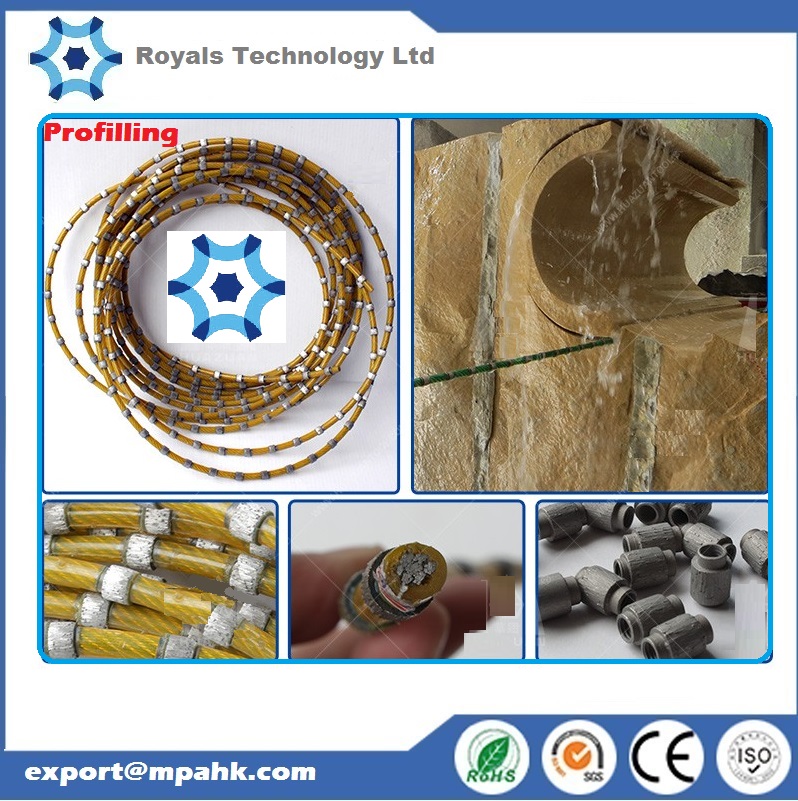

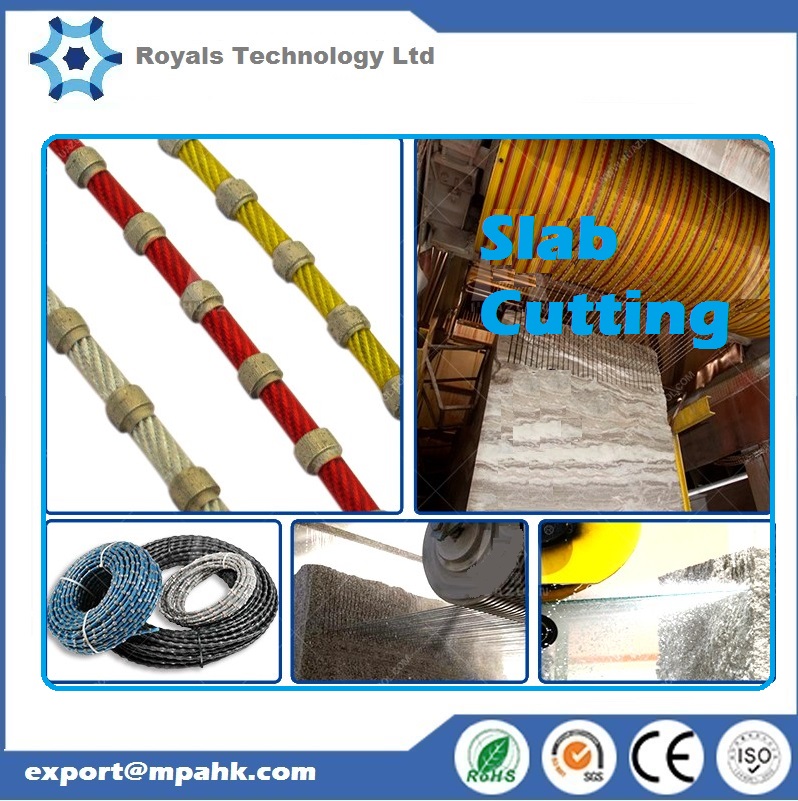

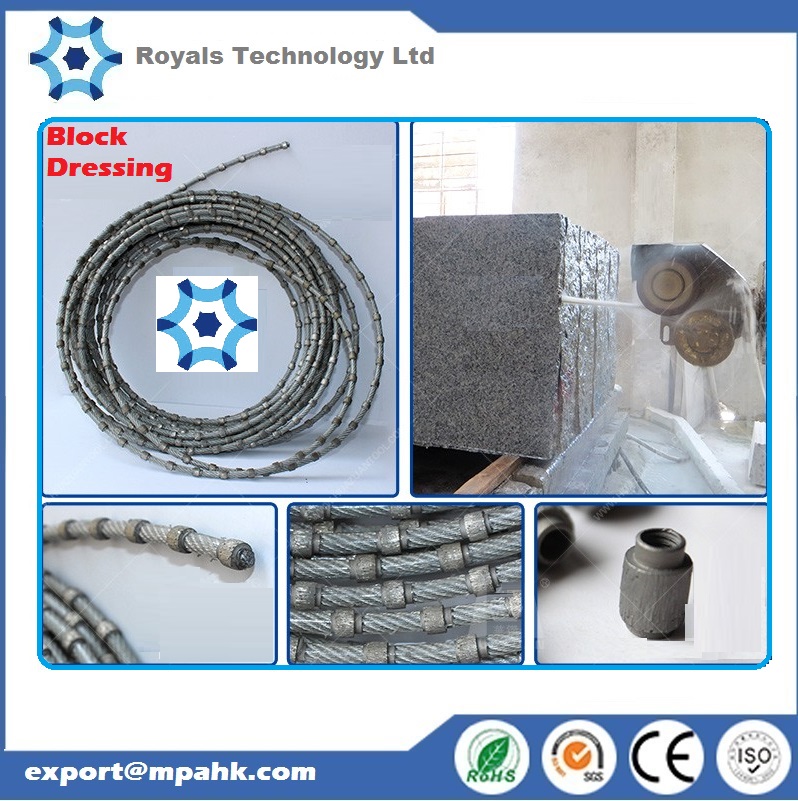

1.For Stone Quarry, Block Squaring&Chamfering,Profiling Cutting
2.For Cutting Reinforce Concrete |
|
Diameter Of Wire Saw |
7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm |
|
Technology of Beads |
Sintered, Electroplated, Vacuum Brazed |
|
Coating Fix Injection |
Plastic, Rubber, Spring, Rubber Spring, Plastic Spring |
|
Beads/Meter |
40/37/33/28/26pcs |
|
Attention |
l. Checking the saw regularly and adjust timely.
2.Checking the pearl abrade regularly,Avoid the eccentric wear
3. Checking the joint regularly and adjust timely.
4. The tension of ropes is 250-300kg(Φ4-5mm ropes)
5. Water supply is around 15-25L/min |
|
Feature |
1.Very less breakage ratio when using therefore increase the working lifetime.
2.Automatic production ensures stable quality performance.
3.Safe, high efficiency and environment protecting. |
Diamond wire saw In Cutting Granite
|
Diameter |
Beads/m |
Reinforcement |
Hardness of stone |
Speed |
Life(m2/m) |
|
(m/s) |
(m2/h) |
|
φ8
φ9 |
37/40pcs |
Plastic
Plastic+Spring |
Soft |
24-28 |
10-20 |
15-20 |
|
Medium hard |
22-26 |
8-15 |
10-15 |
|
Hard |
20-24 |
7-10 |
8-12 |
|
φ10.5
φ11
φ11.5 |
40pcs |
Rubber
Rubber+Spring |
Soft |
25-30 |
15-25 |
20-30 |
|
Medium hard |
22-25 |
10-15 |
15-25 |
|
Hard |
18-22 |
8-12 |
10-15 |
Diamond wire saw In Cutting Marble
|
Diameter |
Beads/m |
Reinforcement |
Hardness of stone |
Speed |
Life(m2/m) |
|
(m/s) |
(m2/h) |
|
φ8
φ9 |
37/40pcs |
Plastic
Plastic+Spring |
Soft |
30-35 |
20-30 |
30-40 |
|
Medium hard |
28-32 |
15-25 |
25-35 |
|
Hard |
26-30 |
10-20 |
20-30 |
|
φ10.5
φ11
φ11.5 |
40pcs |
Rubber
Rubber+Spring |
Soft |
36-38 |
25-30 |
35-40 |
|
Medium hard |
34-36 |
20-25 |
25-30 |
|
Hard |
30-32 |
15-20 |
20-25 |

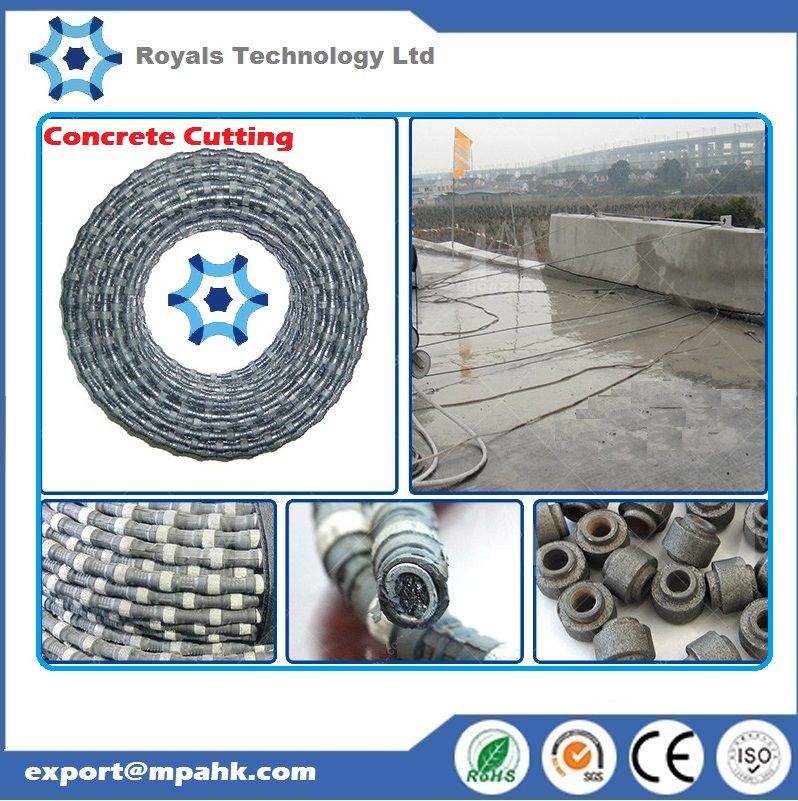

Diamond wire saw In Cutting reinforced concrete
|
Diameter |
Beads/m |
Reinforcement |
Hardness of stone |
Speed |
Life(m2/m) |
|
(m/s) |
(m2/h) |
|
φ10.5mm
φ11mm
φ11.5mm |
40 pcs |
Rubber
Rubber+Spring |
Highly Reinforced Concrete |
22-28 |
2-5 |
5-7 |
|
Normally Reinforced Concrete |
20-22 |
1.5-3 |
2-4 |
|
Steel/Metal structure |
18-20 |
0.5-2 |
1-3 |
We also can make other diameter like 7.5mm, 8.0mm, 8.5mm,9.5mm, 10mm
