Cross Chisel Button Bit Taper 6°7°11°12°Tungsten carbide Coal Iron Ore Mining Rock Drill

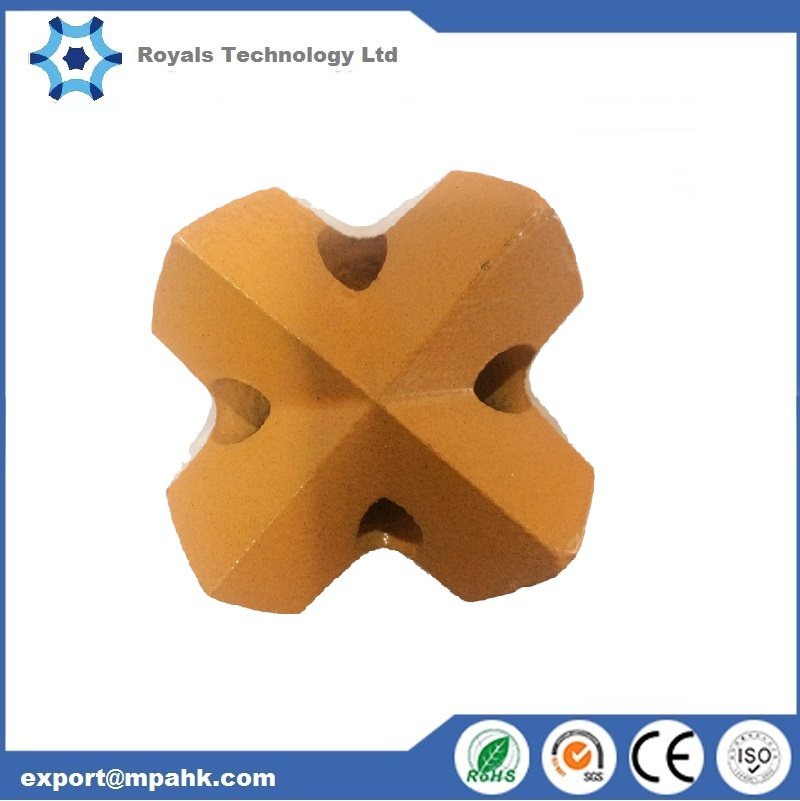

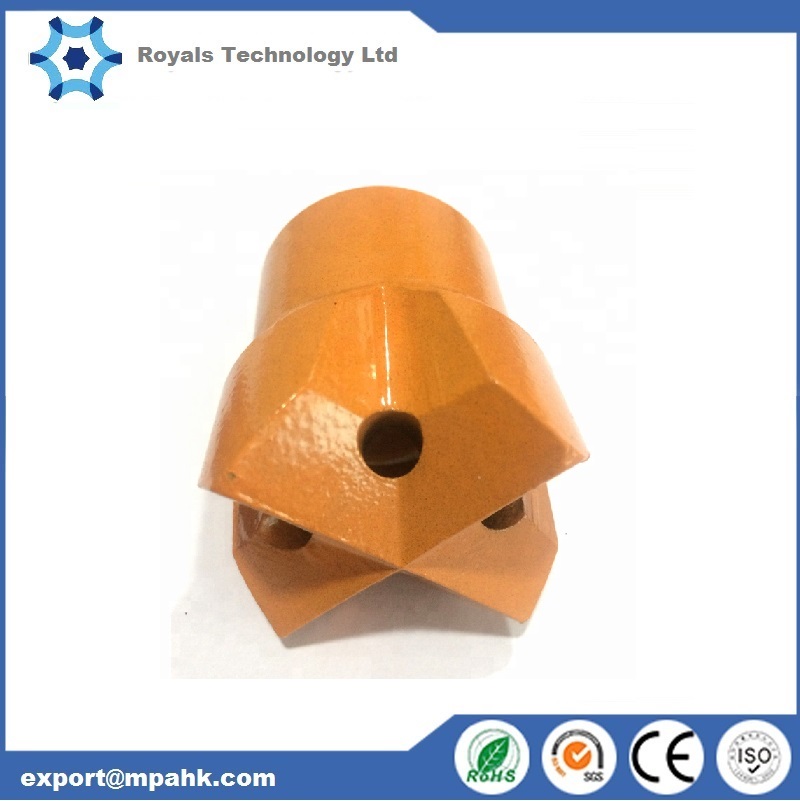

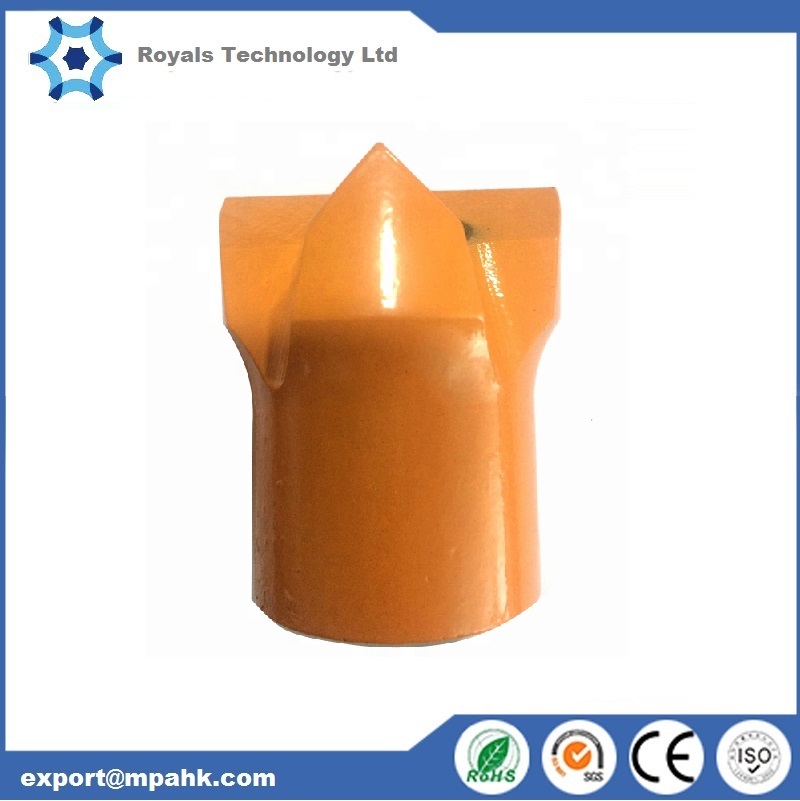

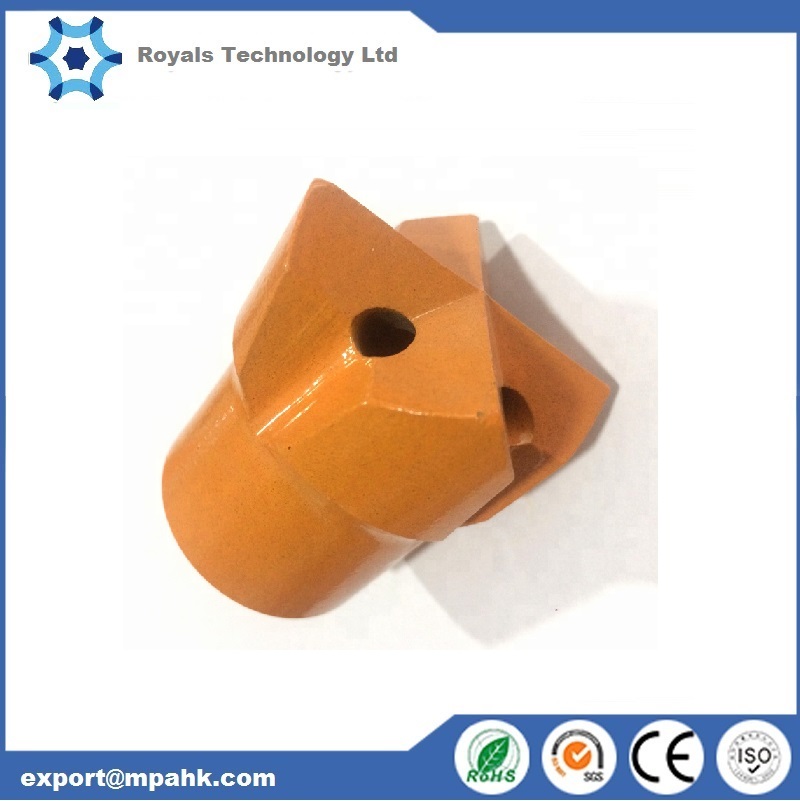

Cross Chisel Button Bit
Taper 6°7°11°12°Tungsten carbide
Coal Iron Ore Mining Rock Drill Application
Carbide bit material adopts superior cemented carbide welding
Higher strength than similar products, bit body is more wear-resistant.
Carbide bit is suitable for coal mining, iron ore mining and rock drilling.
Carbide bit is divided into cross bit, chisel bit and button bit.
Choosing a right carbide bit can improve the drilling efficiency and reduce your cost.
|
Material |
Tungsten carbide and steel |
|
Process |
Forging |
|
Application |
Rock drilling and ore mining |
|
Taper degree |
6°7°11°12° |
|
Bit type |
Carbide rock drilling tools |
|
Size |
28-43mm and customized size |
|
Advantage |
Cross bit is strong radial abrasion resistance and it is applicable to drill fracture
rock and abrasive layers. It is suitable for kinds of rock drilling machine. |
|
Packaging |
Wooden box packaging |
|
Shipping |
Samples are shipped by express, batch products are shipped by sea or by air |
|
Delivery |
1-5 days for samples and available ones in stock. 1-25 days for batch products |
Specification of cross bit
|
Drill diameter |
Taper |
Drill diameter |
Taper |
|
mm |
in |
mm |
in |
|
28 |
1 3/32 |
6,7 |
45 |
1 3/4 |
6,7,11,12 |
|
30 |
1 3/16 |
6,7 |
50 |
1 31/32 |
6,7,11,12 |
|
32 |
1 1/4 |
6,7,11,12 |
60 |
2 3/8 |
6,7,11,12 |
|
34 |
1 11/32 |
6,7,11,12 |
76 |
3 |
6,7,11,12 |
|
35 |
1 3/8 |
6,7,11,12 |
89 |
3 1/2 |
6,7,11,12 |
|
36 |
1 13/32 |
6,7,11,12 |
102 |
4 |
6,7,11,12 |
|
38 |
1 1/2 |
6,7,11,12 |
115 |
4 1/2 |
6,7,11,12 |
|
40 |
1 9/16 |
6,7,11,12 |
127 |
5 |
6,7,11,12 |
|
41 |
1 5/8 |
6,7,11,12 |
140 |
5 1/2 |
6,7,11,12 |
|
42 |
1 21/32 |
6,7,11,12 |
152 |
6 |
6,7,11,12 |
