MOQ: 1000PCS
Product Description:

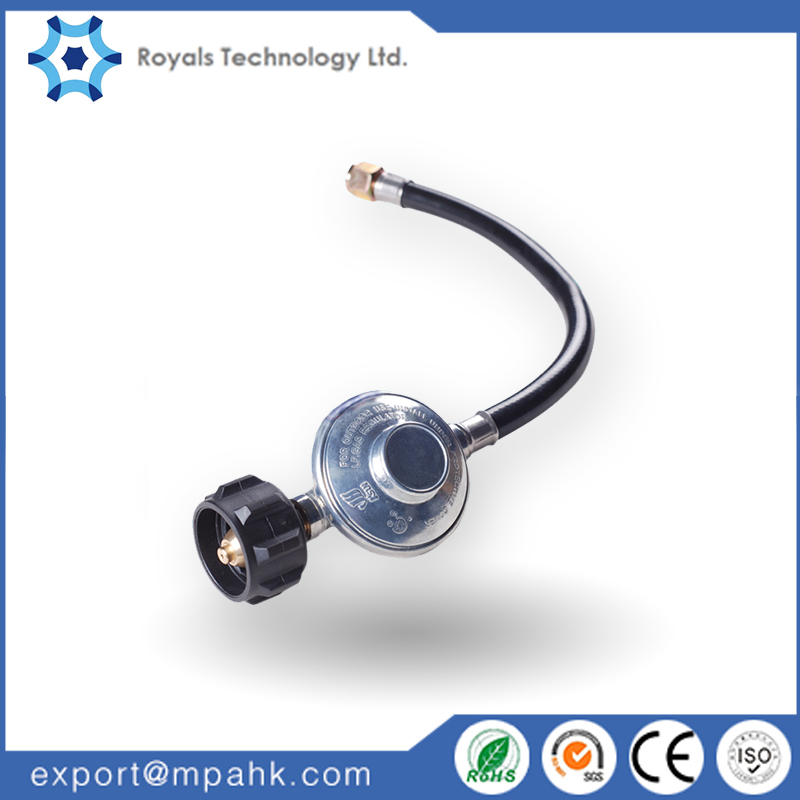

The Gas Regulator in connection with the SRG cylinder valve reduces the high gas pressure in the cylinder to the low service pressure. The double stage design ensures an excellent regulator performance and characteristic. The regulator can be equipped with a pressure relief valve in the low pressure stage, opening at a nominal pressure of 150 mbar.
The body and cover of this regulator form a sealed unit after assembly in order to prevent any external interference which may affect the regulating mechanism.
The regulator can be equipped with a flow limiter which cuts off the gas flow automatically at approx 1500 l air/hr. (under normal cylinder pressure) in case of ruptured gas tubing or the gas tubing is pulled off. After cut-off the gas escape is limited to maximum 35 l air/hr.
No tools are required to connect the regulator to the valve.
Materials and Standards:
The Cookit Gas Regulator is made of a zinc die casting (body and cover) and other corrosion resistant and LPG-proof materials such as brass, stainless steel and acetal resin.
The rubber materials used are developed and produced according to the requirements of EN 549 as well as in accordance with PEAKGAS’s own stringent specifications.
Quality standards:
Cookit’s quality-control system carries an ISO 9001 certificate and is continually assessed by the Notified Body
Capacity:
Rated for inlet pressure of between 0,3 and 16 bar the regulator has a capacity of 1,5 kg gas/hr.
Packaging:
The Regulator comes packed separately in a folding box. The folding boxes are packed incardboard boxes.
