Gas Thermocouple

Gas Thermocouple

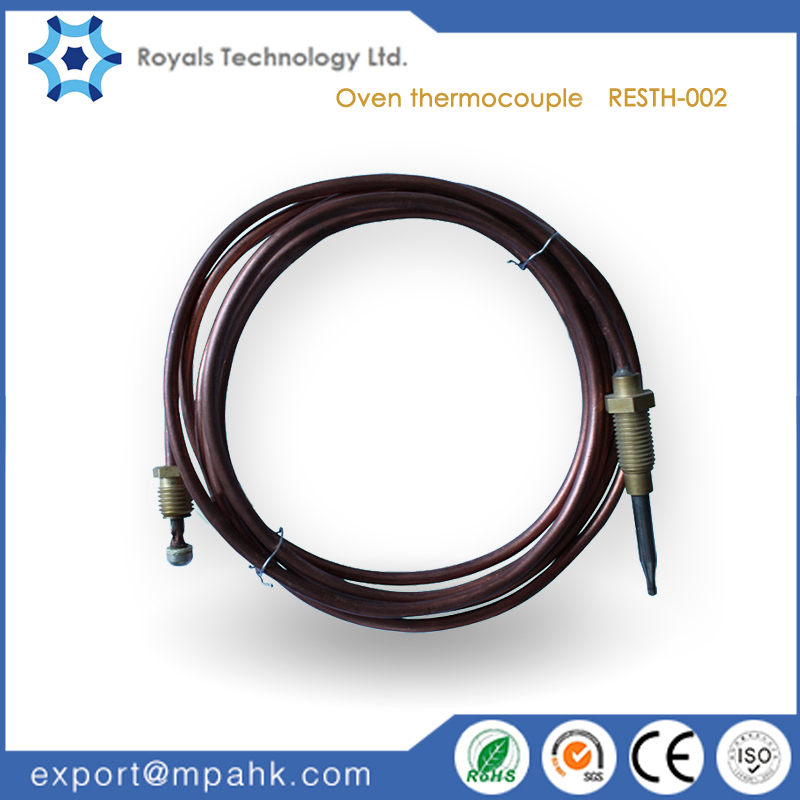

BBQ grill thermocouple gas oven thermocouple RESTH-002

Description: Thermocouple is a part that is working from thermo energy converse into electrical energy. It mainly functions as a provider of continuous electrical energy for magnet. It will stop providing electrical energy for magnet when the flame is put out by external factors, then the magnet acts so that the gas valve is closed, which prevent the danger from gas leakage.
Technical Characteristics 1. Type of connection to magnet unit: Nut, Coaxial, Faston 2. Lengths: 170-1850mm 3. Maximum temperature (head): Depending on the head type, up to 700°C maximum. 4. E.M.F. in open circult: ≥30mV(Normal) ≥16mv(Fast action) 5. Inner resistance: 8.5+0.22*L(mΩ)
Name:	burner gas stove thermocouple	2Port	qingdao
Model	RESTH-002	Place of origin	qingdao, China
Type	Thermocouple	Thermocouple length	Customized
Material	Cooper(thermocouple head:80%Ni,20%Cr) Cable-Silicone, Cooper, Teflon	Tip	M8x1,M9x1,M10x1,11/32-32,4.8x0.5,6.3x0.8
Gas source	NG/LPG	Application	Gas heater, gas water heater, gas grill, gas stove, gas cooker
Voltage	Potential Voltage:≥30mv Work with the electromagnetic valve:≥12mv	Packing	50pcs/box,400pcs/CTN with standard export carton.
Fixing method	Screwed or Stucked	Delivery time	30 days upon official order
MOQ	1000 PCS	Certificate	CE
Supply ability	50000 PCS / Month	Feature	Eco-friendly
We can design and manufacture as per customers’ requirements. Feel free contact us for any specific requirements, also for pictures, drawings and samples of our products. We will try our best to meet your requirements.

Any enquiry or question, pls. send email to export@mpahk.com
Thank you
